Braemar ducted is a trusted Australian-made way to heat and cool a whole home from a single reverse cycle system. A concealed fan coil sits hidden in your roof space and pushes conditioned air through ducts to discreet ceiling diffusers in every room, running on inverter technology and R32 refrigerant. Braemar builds both a single-phase range for standard homes and a three-phase range for larger properties, with flexible zoning and select high-efficiency models eligible for the Victorian VEU rebate. At BM Heating & Cooling, we install Braemar ducted systems right across Melbourne, sizing, zoning and commissioning each one properly so you get quiet, even comfort and low running costs.

Why Choose Braemar Ducted for Your Home


Braemar is made by Seeley International, an Australian company founded in 1938, and is one of the country's most trusted climate control brands. Its ducted reverse cycle range is built for exactly what Melbourne homes need: reliable heating and cooling from one quiet, efficient system.

The range runs on inverter technology and R32 refrigerant, so the system holds a steady temperature while drawing less power, and the noisy components stay outside and in the roof so your living areas stay peaceful.

  • Whole-home comfort: heat and cool every room from a single ducted system.
  • Single and three-phase: a range to suit standard homes right up to large properties.
  • Flexible zoning: condition only the rooms you are using to cut running costs.
  • VEU rebate eligible: select high-efficiency models qualify for the Victorian rebate.

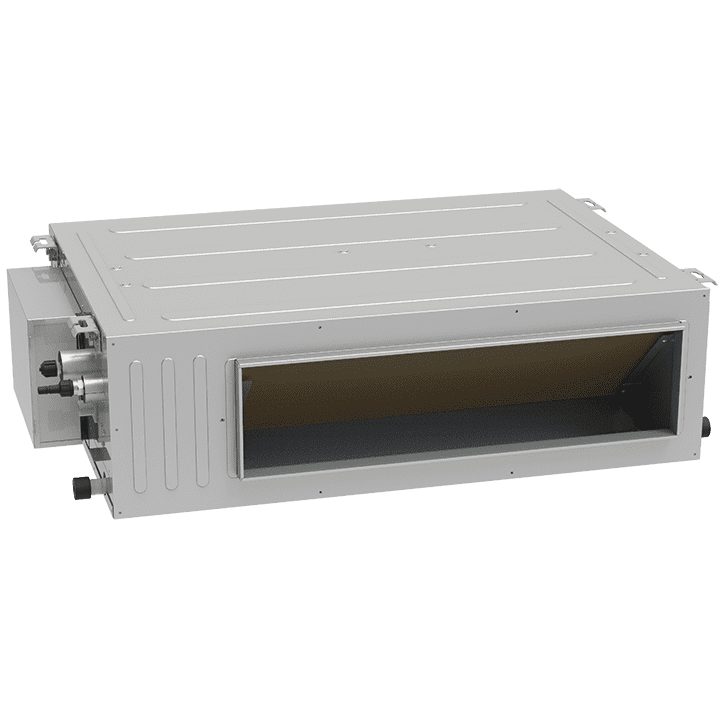

Braemar ducted reverse cycle indoor fan coil unit for a Melbourne home

How a Braemar Ducted System Works


A ducted reverse cycle system moves heat rather than burning fuel to make it. In winter it draws warmth from the outside air and releases it inside; in summer it reverses the cycle and pulls heat out of your home. That is why it delivers far more comfort per unit of electricity than an old gas or electric heater.

A Braemar ducted system has four main parts:

  • Concealed fan coil: the indoor unit hidden in the roof space, sized to your home.
  • Outdoor condenser: a DRED-enabled inverter unit installed neatly beside the home.
  • Ducts and diffusers: carry conditioned air to each room through discreet ceiling outlets.
  • Zone controller: a wired touchscreen controller that sets temperatures and zones.

Zoning & Smart Control


Zoning is where a Braemar ducted system saves you money. A 4-zone wired controller comes standard, and the system can be expanded with individual temperature control across many zones using optional RF room sensors.

Room-by-room control: run the living areas by day and the bedrooms at night, or shut unused rooms off entirely.

Easy wired touchscreen: set the temperature, mode, fan and zones from the backlit Braemar controller, with an optional Wi-Fi module for control from your phone.

Inverter efficiency: the inverter compressor ramps up and down smoothly instead of switching hard on and off, holding a steady temperature while drawing less power.

Motion sensor option: an optional motion sensor trims output in empty rooms for extra efficiency and quieter operation.

Zoning plus inverter efficiency is what keeps running costs down while every room stays comfortable.

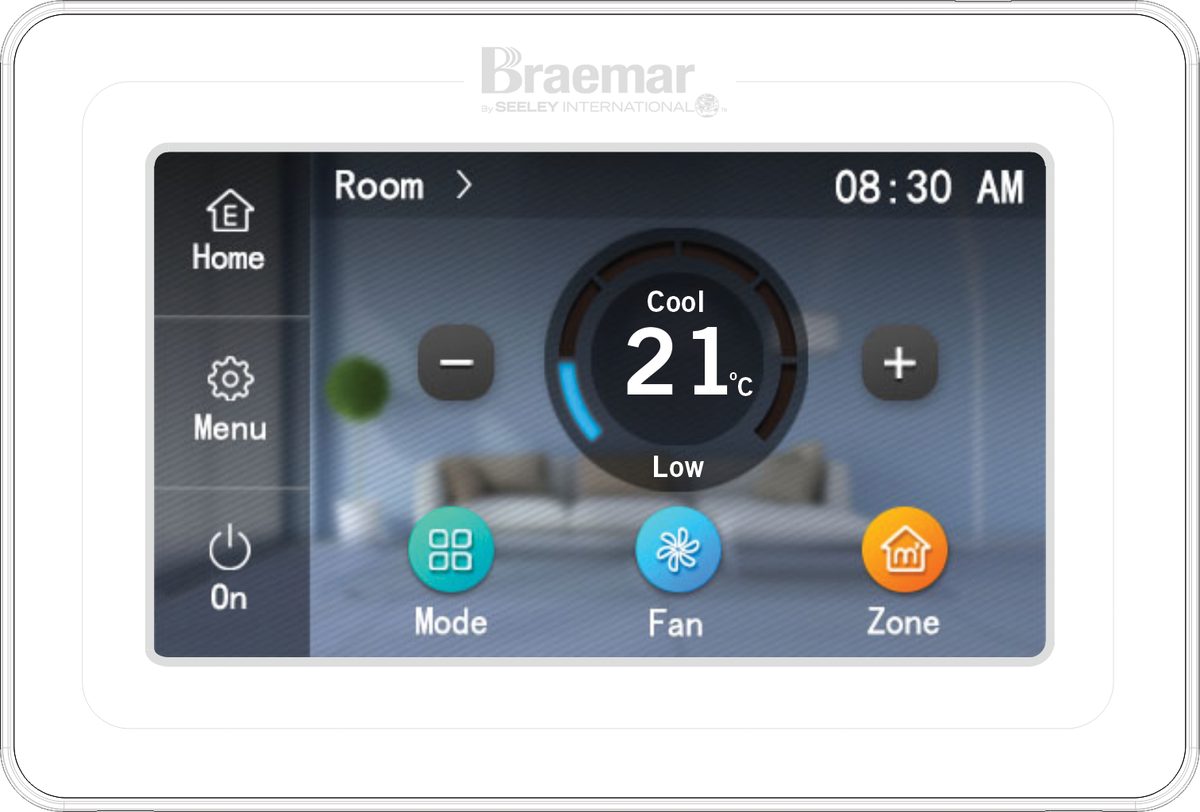

Braemar wired touchscreen zone controller for a ducted reverse cycle system

Braemar Ducted Model Range


We install the full Braemar ducted reverse cycle range and match the right system to your home size, ceiling space and duct layout. Here is how the line-up compares.

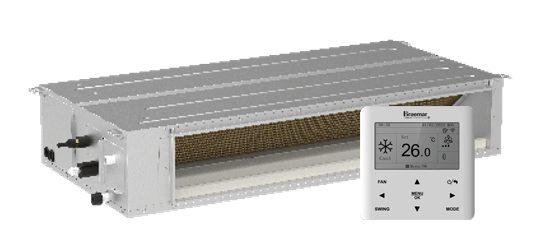

Braemar single-phase ducted reverse cycle indoor unit with controller

Single Phase Ducted Series

The core KDHA range for most Melbourne homes, in five sizes: 7.1, 10.0, 12.5, 14.0 and 16.0 kW. Runs on standard single-phase power with R32 refrigerant and inverter technology, so most homes avoid an electrical upgrade.

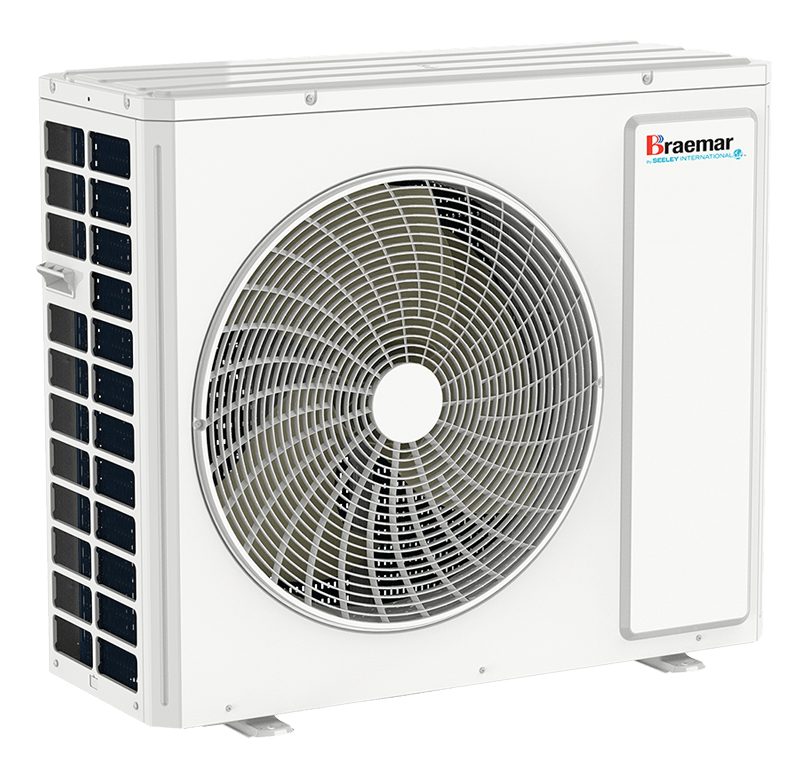

Braemar three-phase ducted reverse cycle outdoor condenser unit

Three Phase Ducted Series

Extra capacity for large and multi-storey homes, around 20 to 24 kW on three-phase power. Powerful whole-home output with the same inverter efficiency and flexible zoning for high-demand properties.

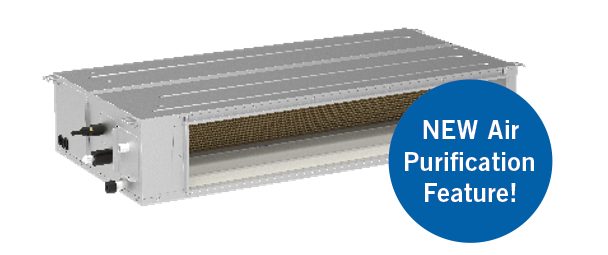

Braemar ducted indoor unit with inverter technology and air purification

Inverter + DRED Ready

Every ducted system uses an inverter compressor that ramps smoothly to hold a steady temperature, with DRED demand response standard on outdoor units and an optional motion sensor for extra efficiency.

Braemar wired touchscreen zone controller

Flexible Zone Control

A 4-zone wired touchscreen controller comes standard, expandable with individual temperature control across many zones using optional RF room sensors, plus an optional Wi-Fi module for phone control.

Braemar ducted reverse cycle indoor fan coil unit running R32 refrigerant

R32 Refrigerant

The current Braemar ducted range runs on R32, which is more energy efficient and has around 68% lower global warming potential than the older R410A, paired with inverter tech for steady, low-cost running.

VEU Rebate

Select Models VEU Eligible

Certain high-efficiency Braemar ducted models can qualify for the Victorian VEU rebate, especially when replacing an old ducted gas heater. We confirm which models qualify and your eligibility with your quote.

Energy Efficiency & the VEU Rebate


The Braemar ducted range pairs inverter technology with R32 refrigerant, which improves efficiency and uses a refrigerant with around 68% lower global warming potential than the older R410A. That efficiency is also what can make certain high-efficiency models eligible under the Victorian Government's Victorian Energy Upgrades (VEU) program, especially when replacing an old ducted gas heater.

How the VEU Discount Works

An approved high-efficiency ducted system generates energy-saving certificates based on the emissions it avoids over its lifetime. As an accredited installer, BM Heating & Cooling converts those certificates into a discount that comes straight off your install price on the day, with no claim forms and no income test.

Not every model qualifies, and both the discount and the co-payment are set by the scheme and are changing through 2026. Rather than quote a number blind, we confirm which Braemar models are eligible and your current figure as part of your free quote.

Warranty & Professional Installation


Braemar backs its ducted reverse cycle range with a 5-year comprehensive manufacturer's warranty. That warranty relies on correct sizing, installation and commissioning, which is exactly what you get with a licensed installer. We match the capacity to your home, set the airflow for your duct runs, balance it across every zone and commission the system properly before handover.

Getting the sizing right matters: an undersized system struggles on the coldest and hottest days, while an oversized one short-cycles and wastes energy. We assess your floor area, ceiling space, insulation and layout so the system we recommend, whether a single-phase 7.1 kW unit or a three-phase system for a large home, is the right fit.

Areas We Serve Across Melbourne


BM Heating & Cooling installs Braemar ducted systems right across Melbourne. From our base in the northern suburbs we regularly work through Preston, Reservoir, Coburg, Brunswick, Bundoora, Heidelberg, Ivanhoe, Northcote and Thornbury, and out to Melton and the wider metro area. Wherever you are in Melbourne, we can design and install a system to suit your home. See our full list of service areas, or explore reverse cycle ducted systems, Mitsubishi Electric ducted and Rinnai ducted.

Braemar ducted reverse cycle outdoor condenser unit installed beside a Melbourne home

The Braemar Outdoor Unit


Every Braemar ducted system pairs the concealed fan coil with a matched outdoor condenser. These inverter units are built for Australian conditions, running efficiently and quietly through both winter heating and summer cooling, with DRED demand response support standard.

The right outdoor unit depends on your system: the single-phase KDHA range runs on standard household power, so most homes avoid a costly three-phase upgrade, while the three-phase range steps up the capacity for larger properties.

Every install is carried out by licensed, ARCtick-certified technicians, backed by Braemar's 5-year comprehensive warranty and our own workmanship guarantee.

Braemar Ducted FAQs


Most Melbourne homes use the Braemar single-phase ducted range, which comes in 7.1, 10, 12.5, 14 and 16 kW sizes (the KDHA series). Larger homes with high demand step up to the three-phase range at 20 to 24 kW. We size the system to your floor area, ceiling space, insulation and zoning needs so it is neither undersized nor oversized.

The single-phase KDHA series (7.1 to 16 kW) runs on standard household power and suits most homes, so you avoid an electrical upgrade. The three-phase series (around 20 to 24 kW) is for large or double-storey homes that need more capacity and have three-phase power available. We confirm your supply during the site assessment.

Braemar ducted systems come with a 4-zone wired controller as standard and can be expanded with individual temperature control across many zones using optional RF room sensors. That lets you run the living areas by day and the bedrooms at night, or shut unused rooms off entirely, which cuts running costs.

Certain high-efficiency Braemar ducted reverse cycle models can qualify under Victorian Energy Upgrades, especially when replacing an old ducted gas heater. The discount is applied upfront to your invoice with no income test. Rebate and co-payment amounts are set by the scheme and are changing through 2026, so we confirm which models qualify and your current eligibility when you get a quote.

The current Braemar ducted reverse cycle range uses R32 refrigerant, which is more energy efficient and has around 68 percent lower global warming potential than the older R410A. It is paired with inverter technology for steady, low-cost running.

Braemar ducted systems use inverter technology that ramps smoothly to hold a steady temperature while drawing less power, with an optional motion sensor for extra efficiency and quiet operation. The compressor sits outside and the fan coil is hidden in the roof, so your living areas stay quiet.

Braemar backs its ducted reverse cycle range with a 5-year comprehensive manufacturer's warranty. Correct sizing, installation and commissioning by a licensed installer protects that warranty, which is exactly how BM Heating & Cooling installs every system.

Braemar is made by Seeley International, an Australian company founded in 1938, and is one of the country's most trusted climate control brands. Its ducted reverse cycle range is designed and built for Australian conditions, with inverter efficiency, R32 refrigerant, DRED support and flexible zoning.
